Shaker Screen

source：西安華揚油氣設備有限公司 time：2017-11-10

API Number	D100(mm）/D100(microns）	API Number	D100(mm）/D100(microns）
API 20	＞780.0 To 925.0	API 120	＞116.5.0 To 137.5
API 30	＞550.0 To 655.0	API 140	＞98.0 To 116.5
API 35	＞462.5 To 550.0	API 170	＞82.5 To 98.0
API 40	＞390.0 To 462.0	API 200	＞69.0 To 82.5
API 50	＞275.0 To 390.0	API 230	＞58.0 To 69.0
API 60	＞213.0 To 275.0	API 370	＞49.0 To 58.0
API 70	＞196.0 To 213.0	API 325	＞41.5 To 49.0
API 80	＞165.0 To 196.0	API 400	＞35.0 To 41.5
API 100	＞137.5 To 165.0

Huayang Oil & Gas adopt the international most advanced technology to manufacture Huayang Oil & Gasr screens and also supply replaceable screens for all the popular brand shale shakers, the screens mesh from API 20 to API 400. Huayang Oil & Gasr screen all has long working life, effeciently seperation, accoring to API standard strictly

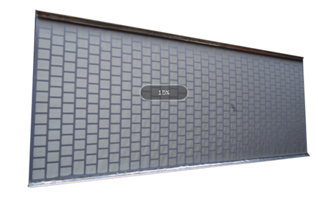

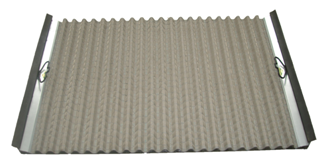

Shaker screen is mainly divided into frame screen(wave screens and flat screen),hook strip screen(wave screens and flat screen),hook strip soft screen.Huayang Oil & Gas do not only make their own screen, can also be customized according to the requirements. Same to foreign brands, D series, S series and B series vibration screen.
