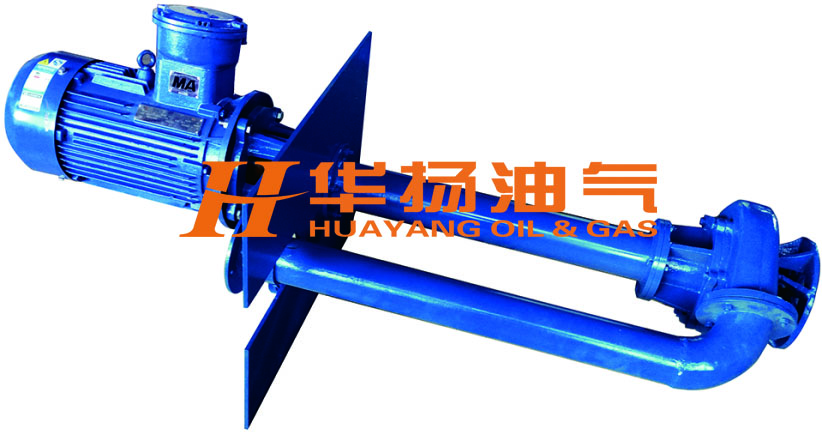

Centrifuge Supply Pump
| Model | Flow | Lift | Speed | Motor |
| 50YZS25-12 | 25?/h | 12m | 1430r/min | 3kw |
| 50YZ20-18 | 20?/h | 18m | 1430r/min | 4kw |
| 80YZ50-20B | 40?/h | 16m | 1440r/min | 5.5kw |
| 80YZ50-20 | 60?/h | 17.5m | 1440r/min | 7.5kw |
| 80YZ80-20 | 90?/h | 22m | 1460r/min | 11kw |
| 100YZ100-30A | 75?/h | 30m | 1470r/min | 18.5kw |
| 100YZ100-30 | 60?/h | 36m | 1470r/min | 22kw |
| 100YZ160-38B | 82?/h | 33m | 1480r/min | 30kw |
| 100YZ120-60 | 120?/h | 40m | 1480r/min | 45kw |
| 150YZ250-40A | 135?/h | 35m | 1480r/min | 55kw |
| 150YZ250-40B | 120?/h | 28m | 1480r/min | 37kw |
Feature：

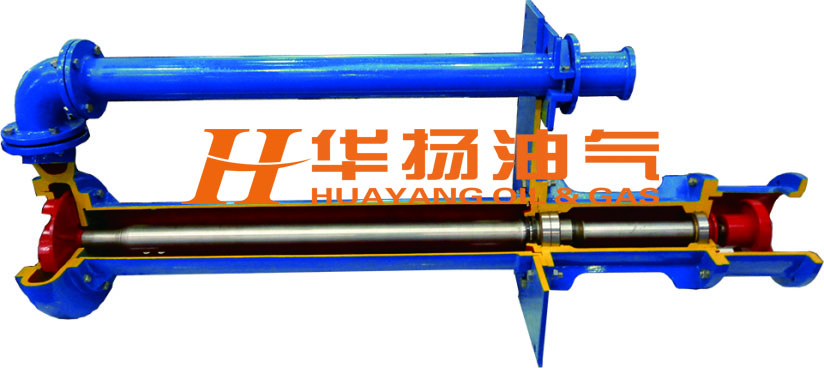

HYYZ series slurry pump mainly supply mud for Shale Shaker and centrifuges from the mud pit. The structure ofHYYZ series slurry pump is single level, single sucking Cantilever type, using bearing seat, supports seat, connecting pipe to connect the pump hydraulic parts of pump, Liquid discharged by the hydraulic hose assembly, pump’s impeller is Semi-open impeller, In the impeller import stretch equipped with mixing blades, the pump’s main features is submerged parts of the shaft, has enough of stiffness, between the impeller and pump shell did not set bearing, shaft seals, can conveying the medium contains larger concentration solid particles. The standard length of Pump Insert liquid is1.3 meters, and can be equipped with a suction tube if required. Shaft seals adopts the running of Insert pump into liquid, without shaft seal, transmission by vertical motor mounted on the motor bearing block, connected by coupling with the pump.
